Description

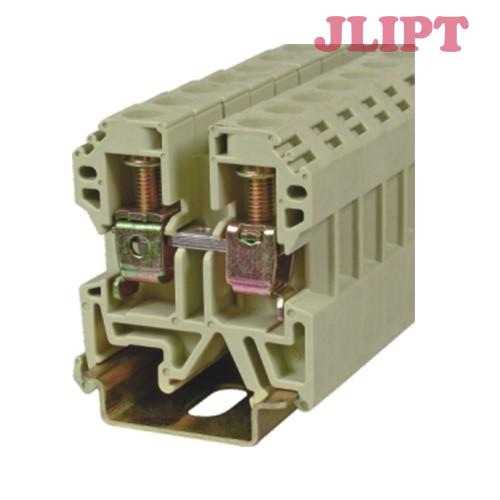

Insulation parts of terminal blocks is made of modified Pa66 which is have reliable electeic and mechanical per-formances
ITEM NO. | STK-2.5 | STK-4 | STK-6 | STK-10 | STK-16 | ||||||
Order No. | 06001 | 06002 | 06003 | 06004 | 06005 | ||||||
Dimentions | |||||||||||
Width x Length x Height | (mm) | 40/6/41 | 40/6.5/46 | 40/8/46 | 40/10/46 | 50/12/51.8 | |||||
Nominal screw diameter | (mm) | M2.5 | M3 | M3.5 | M4 | M4 | |||||
Torque | (Nm) | 0.4-0.8 | 0.5-1.0 | 0.8-1.6 | 2.0-2.4 | 2.0-2.4 | |||||
Stripping Length | (mm) | 10 | 12 | 12 | 12 | 15 | |||||
Rated Data | |||||||||||
Voltage Rating/ Current | (V) / (A) | 800V / 24A | 800V / 32A | 800V / 41A | 800V / 57A | 800V / 76A | |||||
Power-frequency withstand voltage | 2.5KV | 2.5KV | 2.5KV | 2.5KV | 2.5KV | ||||||
Wire section | (m㎡) | 2.5 | 4 | 6 | 10 | 16 | |||||
Connecting capacity | |||||||||||
Single wire | (m㎡) | 0.5-6 | 0.5-6 | 0.5-10 | 1.5-16 | 2.5-16 | |||||
Multistrand wire | (m㎡) | 1.5-4 | 1.5-6 | 1.5-10 | 1.5-16 | 2.5-16 | |||||
Multistrand wire with termina | (m㎡) | 0.5-2.5 | 0.5-4 | 0.5-6 | 0.5-10 | 4-16 |
